Ø
Chinese Name: 正置荧光显微镜

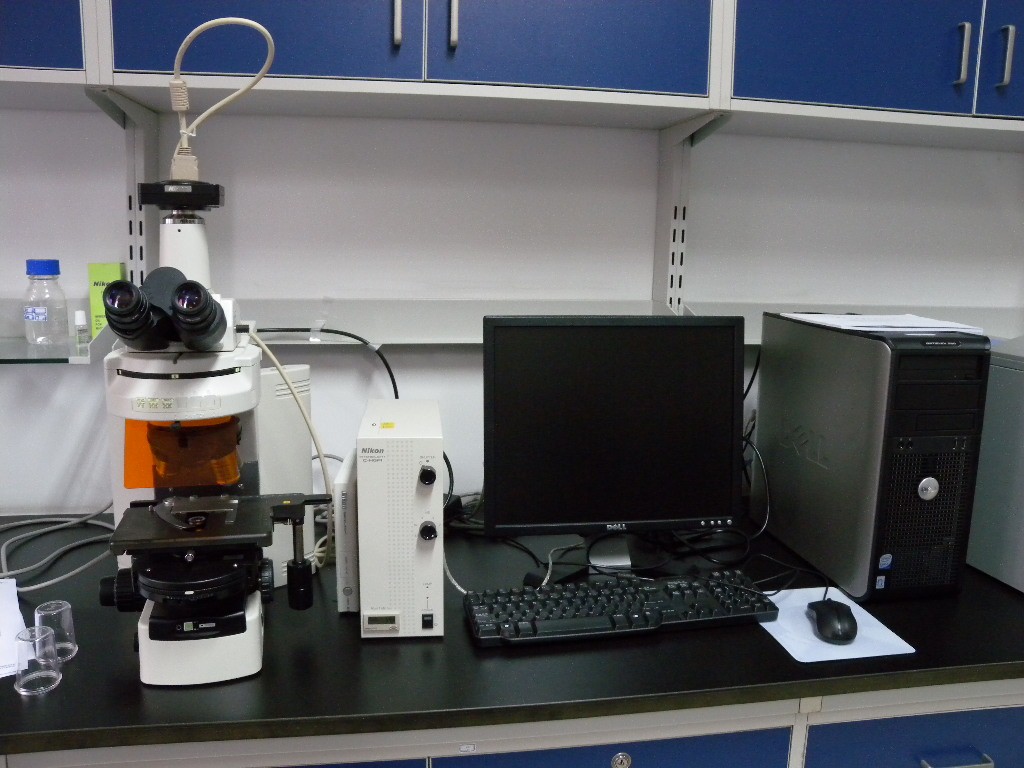

Ø  Model: Nikon ECLIPSE 80i

Ø  Instrument number:20096248

Ø  Manufacturer: Nikon Japan

Ø  Acquisition price: ￥179790

Ø  Acquisition date: 2009-12-02

Ø  Locate: Room106, 24thbuilding, Wing A

Tianjin University

Ø  Specification:

u  Optical system: CF160 Infinity optical system;

u  Focus: Fine focusing: 0.1 mm/ rotation. coarse focusing: 14 mm/ rotation.

u  Lowest reading: 1 μm on the left side of the handwheel. Coarse dynamic torsional moment of the handwheel is adjustable.

u  Illuminator: 12V-100W halogen lamp. It can provide the best lighting built-in "compound eye" digital imaging optical system. Built-in filter: NCB11、ND8、ND32.Revolving nosepiece: Sextuple nosepiece. DIC sextuple nosepiece.

u  Eyepiece tube: C-TB Binocular Tube (for F. O. V 22mm), C-TF Trinocular Tube F (for F.O.V 22mm/25mm, observation/photo: 100:0, 0:100), C-TT Trinocular Tube T (for F.O.V 22mm/25mm, observation/photo: 100:0, 20:80, 0:100), C-TE2 Ergonomic Binocular Tube (for F.O.V 22mm, inclination:10-30°extension 40mm).

u  Stage: Super-hard alumite coating surface. Stage handle can be positioned. stage handle height and torque adjustable.159mm×243mm rectangular stage.Cross travel 54 (Y) x 78 (X) mm.

Ø  Main Application:

u  Observation and filming for fixed specimens of normal dyeing;

u  Upright universal research-grade high-resolution fluorescence microscopy, specimens can be used for a variety of conventional bright field, fluorescence observation;

u  Conventional fluorescence of single fluorescent labeled specimens photographed and superimposed;

u  DIC imaging, for any magnification, provide the high resolution and high contrast anaglyph imaging technology.
