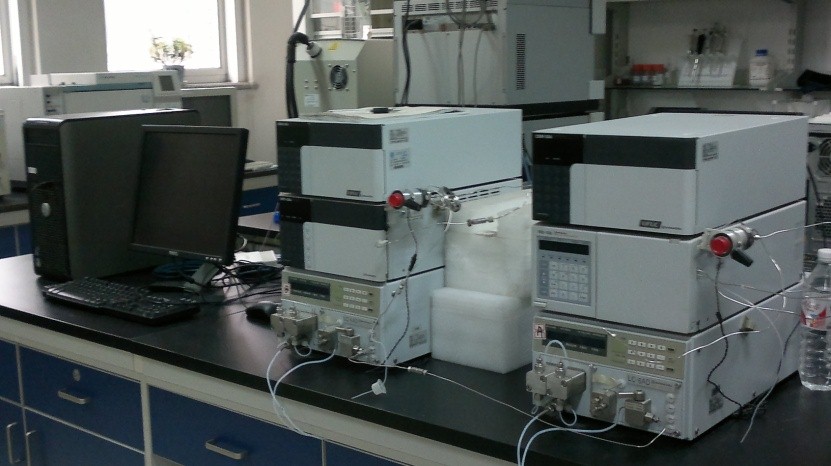

Preparative HPLC

Ø  Chinese Name制备型高效液相色谱仪

Ø
Model: LC-6AD

Ø  Instrument number:20096249

Ø  Manufacturer: Japan Shimadzu

Ø  Acquisition Price196630

Ø  Acquisition Date2009-12-02

Ø  Locate: Room101, 24thbuilding, Wing A

Tianjin University

Ø  Specification:

u  Pump: the parallel double plunger;

u  Flow capacity range: 0.001-20ml/min;

u  Flow accuracy±1or10uL/min(0.01~5mL/min);

u  Flow precision±0.3;

u  Constant pressure infusion:1~49Mpa;

u  UV detector:

Wavelength range: 190~700nm;
Noise: under ±0.25×10-5AU;
Drift: under 1×10~4AU/h;
Liner: 2.5AU(ASTM specification)
Spectral bandwidth : 8nm
Wavelength accuracy: under 1nm;
Wavelength precision: under0.1nm;
The temperature control standard pool;

u  Sample injector: manual injector.

Ø  Main Application:

u  Mainly used in extraction and purification of plant biological, synthesis of pharmaceutical and biochemical products.
