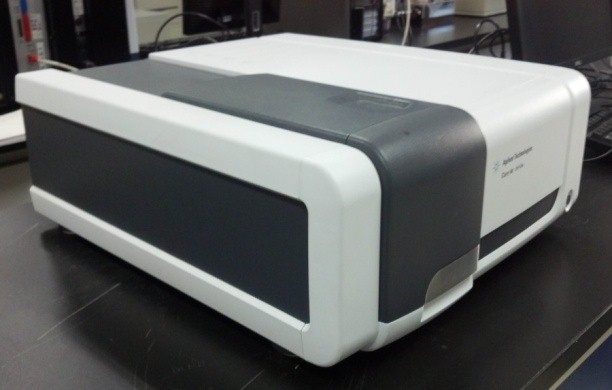

UV-Vis spectrophotometer

Ø Chinese Name紫外可见分光光度计

Ø Model: Cary 60

Ø Instrument number:201206496

Ø Manufacturer: Agilent

Ø Acquisition Price: 80000

Ø Acquisition Date: 2012-10-05

Ø Locate: Room103, 24thbuilding, Wing A

Tianjin University

Ø Specification:

u Monochromatorhigh-performance Czerney-Turner Monochromator design;

u Light: pulse of deuterium lamp,Long life flashing 3000000000 times, to light the light only in the test;

u Wavelength range:1901100nm

u Photometric range±3.3Abs

u Photometric accuracy±0.005A(Use NIST930 Filter at1.0Abs )

u Baseline smoothness±0.001Abs

u Maximum scan rate24000 nm/min, less than 3 seconds to complete whole wavelength scanning.

Ø Main Application

u Verification of material,reference substance was compared with standard atlas;

u Measurable compounds under different wavelength absorption, determine the maximum absorption wavelength;

u Complex composition and determination of the stability constant;

u Speculated that the molecular structure of the compounds;

u Content determination;

u Purity test.
