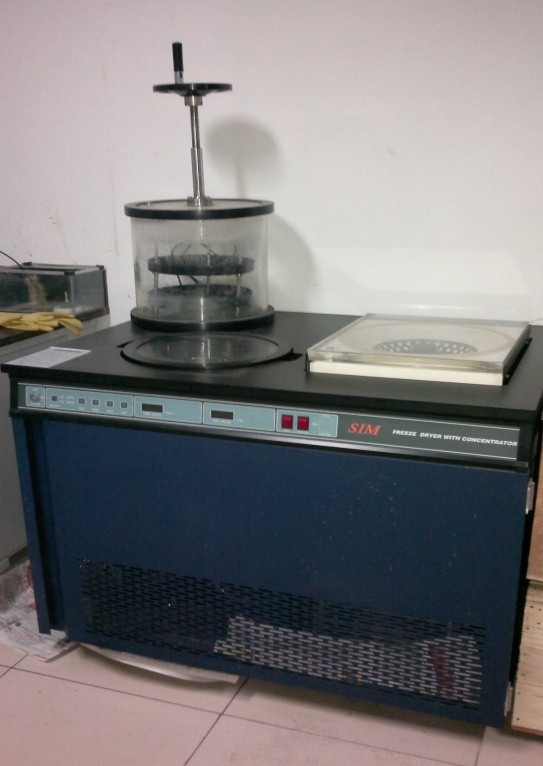

Ø  Chinese Name：冻干机

Ø  Specification Model: MCFD5508

Ø  Instrument number ：20048370

Ø  Manufacturer: America SIM

Ø  Acquisition price：￥143700

Ø  Acquisition date：2004-12-09

Ø  Locate: Room106, 24thbuilding, Wing A

Tianjin University

Ø  Specification:

u  Water supplement：5L/Day;

u  Total water supplement: 8L;

u  Freezing temperature：-50℃~-55℃;

u  Compressor power：1/3HP;

u  Dimensions (mm)：1005*750**885 (wide *deep*high);

u  Power source (V/HZ)：220/50;

u  Vacuum Pump specifications:165 L;

u  Weight : 120 kg.

Ø  Main Application：

u  Vacuum freeze drying technology is mainly used for drying some substances such as thermal sensitive, easy to volatile substances;

u  In the field of biotechnology products, freeze-drying technology is mainly used in serum, plasma, vaccines, enzymes, antibiotics, hormones and other drugs production;

u  Biochemistry examination drugs, immunology and bacteriologic examination drugs;

u  Long-term preservation of nerve tissue and organs, Blood, bacteria, artery, bone, skin, cornea etc;

u  In the pharmaceutical industry, food industry, materials science and agricultural products deep processing and other fields have been widely used.
