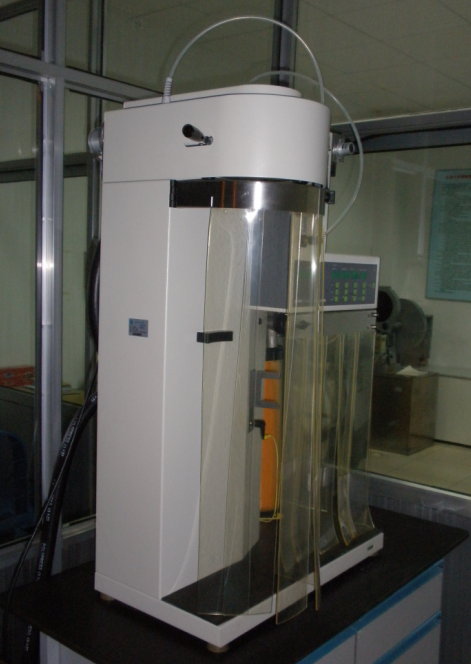

Mini Spray Dryer

Chinese Name: 小型喷雾干燥机

Ø  Model: Mini B-290

Ø  Instrument Number:20061859

Ø  Manufacturer: Switzerland Buchi

Ø  Acquisition price:347999.55

Ø  Acquisition date: 2006-05-22

Ø  Locate: Room104, 24thbuilding, Wing A

Tianjin University

Ø  Specification:

u  The maximum drying capacity: 1 L/h for water;

u  Drying time: 1.0-1.5 seconds;

u  The maximum air flow: 35 mL/h;

u  The maximum compressed air flow: 800 L/h (standard state);

u  The highest temperature: 220;

u  LED digital display:

inlet temperature, outlet temperature, blower air flow, peristaltic pump speed;

u  Nozzle diameter: 0.7 mm standard, it also can be selected;

u  Exclusive worldwide patent antistatic spray technology; scalable to handle organic solvents; special ruby nozzles, automatic anti-blocking function; can achieve spray freeze function (the latest technology).

Ø  Main Applications:

This equipment can be used for spray drying aqueous phase and organic phase solvents, the main function and purpose as follows:

u  The preparation of pharmaceutical microcapsules microspheres;

u  The preparation ofpharmaceutical solid dispersion;

u  The curing process of Chinese medicine extract;

u  The production of spheroidal voids medicinal materials;

u  Functional polymer processing;

u  The food processing.
