Ø  Chinese Name: 台式实验室式流化床

Ø

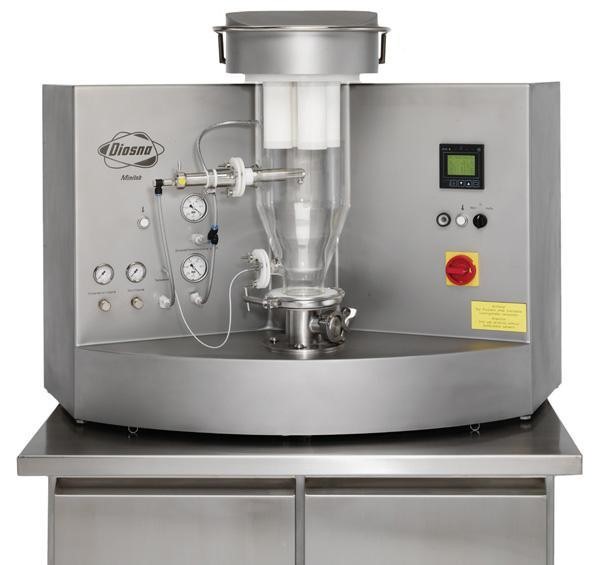

Model: Diosna Minilab365-049

Ø  Instrument Number:20061809

Ø  Manufacturer:

Germany Diosnal Dierks&Sohne GmbH

Ø  Acquisition price:￥387069.14

Ø  Acquisition date: 2006-05-22

Ø  Locate: Room104, 24thbuilding, Wing A

Tianjin University

Ø  Specification:

u     The swelling chamber volume: 3 L or 5 L;

u     The swelling chamber material: glass or stainless steel;

u     The upper diameter: 190 mm (3 L), 290mm (5 L);

u     The diameter of lower part: 80mm (3 L), 160mm (5 L);

u     The maximum intake air temperature: 80 ℃, digital display;

u     The Highest intake rate: 120 mL/h;

u     Sample processing capacity: 50~3000 g;

u     Voltage: 380V / 50Hz, 6.0KW;

u     Size: 1200 × 550 ×950mm;

u     Weight: 80 kg.

Ø  Main Applications:

u  This equipment can be used for material drying, mixing, granulating and coating, the main function and purpose as follows:

u  Raw and auxiliary material powders mixed;

u  Raw and auxiliary material powders dry;

u  The preparation of granulation, capsules and tablets of raw and auxiliary material powders;

u  The medicament powder coating;

u  Taste masking, sustained-release and protective coating of drug particles, apply to the preparation of capsules and tablets;

u  Taste masking, sustained-release and protective coating of tablets.
